Enclosed Distribution Rack custom designed to the application; all work is performed inhouse by our lisenced electricians and comes complete with ESA certification

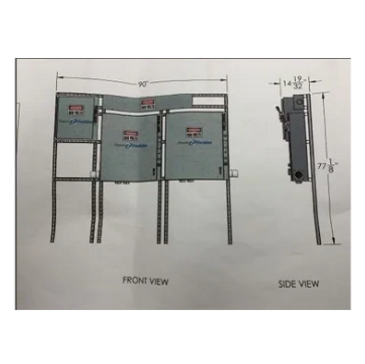

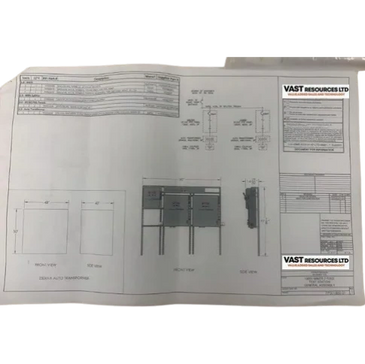

Distribution rack mounted on a cantruss frame: consisting of Bolter GFGC panel, nema 12 enclosure 150A, 600V, 3ph 3w c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. Jumbo GFGC panel, nema 12 enclosure, 225A, 600V, 3ph, 3w, c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. 400A 600v disconnect nema 12 enclosure and a 400aA 600v splitter nema 12 enclosure, 400A 600V 3PH 4Wire Has a female receptacle mounted on side of GFGC panel Custom options and builds are available.
Enclosed Distribution Rack custom designed to the application; all work is performed inhouse by our lisenced electricians and comes complete with ESA certification
Dewatering panels and portable carts
Distribution rack mounted on a cantruss frame: consisting of Bolter GFGC panel, nema 12 enclosure 150A, 600V, 3ph 3w c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. Jumbo GFGC panel, nema 12 enclosure, 225A, 600V, 3ph, 3w, c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. 400A 600v disconnect nema 12 enclosure and a 400aA 600v splitter nema 12 enclosure, 400A 600V 3PH 4Wire Has a female receptacle mounted on side of GFGC panel Custom options and builds are available.
Enclosed Distribution Rack custom designed to the application; all work is performed inhouse by our lisenced electricians and comes complete with ESA certification
Distribution rack mounted on a cantruss frame: consisting of Bolter GFGC panel, nema 12 enclosure 150A, 600V, 3ph 3w c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. Jumbo GFGC panel, nema 12 enclosure, 225A, 600V, 3ph, 3w, c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. 400A 600v disconnect nema 12 enclosure and a 400aA 600v splitter nema 12 enclosure, 400A 600V 3PH 4Wire Has a female receptacle mounted on side of GFGC panel Custom options and builds are available.
Distribution rack mounted on a cantruss frame: consisting of Bolter GFGC panel, nema 12 enclosure 150A, 600V, 3ph 3w c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. Jumbo GFGC panel, nema 12 enclosure, 225A, 600V, 3ph, 3w, c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. 400A 600v disconnect nema 12 enclosure and a 400aA 600v splitter nema 12 enclosure, 400A 600V 3PH 4Wire Has a female receptacle mounted on side of GFGC panel Custom options and builds are available.
Distribution rack mounted on a cantruss frame: consisting of Bolter GFGC panel, nema 12 enclosure 150A, 600V, 3ph 3w c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. Jumbo GFGC panel, nema 12 enclosure, 225A, 600V, 3ph, 3w, c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. 400A 600v disconnect nema 12 enclosure and a 400aA 600v splitter nema 12 enclosure, 400A 600V 3PH 4Wire Has a female receptacle mounted on side of GFGC panel Custom options and builds are available.

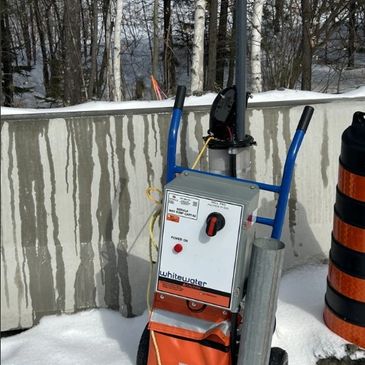

Submersible Pump & portable cart assembly

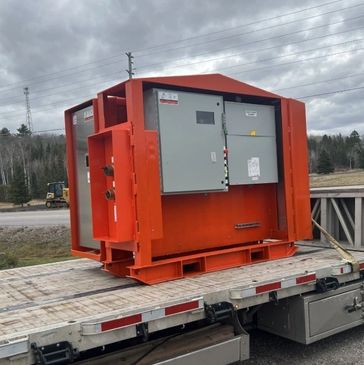

Skidable distribution, customization available
Distribution rack mounted on a cantruss frame: consisting of Bolter GFGC panel, nema 12 enclosure 150A, 600V, 3ph 3w c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. Jumbo GFGC panel, nema 12 enclosure, 225A, 600V, 3ph, 3w, c/w Startco relay and test switch, 400a frame breaker and vacuum contactor and pilot devices, Test, Start, Run light and Emergency stop. 400A 600v disconnect nema 12 enclosure and a 400aA 600v splitter nema 12 enclosure, 400A 600V 3PH 4Wire Has a female receptacle mounted on side of GFGC panel Custom options and builds are available.
